Automotive-Grade Certified Magnetic Angle Position Sensor --- AS5270
The AS5270 is a dual-chip, high-resolution angular position sensor designed for precise absolute angle measurement. It offers an analog output interface (AS5270A) or a digital output interface (AS5270B). The latter can be programmed for PWM or SENT-compatible output interfaces.
Based on Hall sensor technology, this device measures the orthogonal components of the magnetic flux density (Bz) during full-circle rotation and employs a robust architecture based on a 14-bit sensor array and an analog front-end (AFE) to compensate for external stray magnetic fields. Subranges can be programmed to achieve optimal resolution for specific applications. To measure angles, only a simple two-pole magnet rotating at the center of the package is required. The magnet can be placed either above or below the device. Absolute angle measurement provides an instant indication of the magnet's angular position. The AS5270 operates at a 5V supply voltage, with power and output pins protected against overvoltage up to +20V. Additionally, the power pins feature reverse polarity protection up to -20V.
The AS5270A is a stacked dual-chip design for high-reliability redundant operation. In this device, two chips are aligned and encapsulated within the same package. Each chip has separate pins, ensuring that electrical faults in the device do not affect both chips.
ams brings 20 years of expertise in magnetic sensor systems and has extensive experience in selecting the most suitable magnets. ams also provides recommended magnet suppliers.
For more product information, visit the ams AG website: https://ams.com/en/ams-start

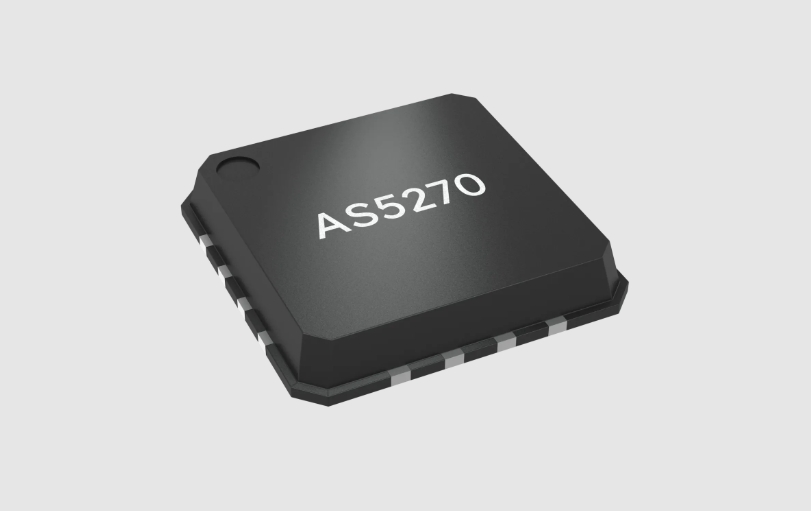

Product Image:

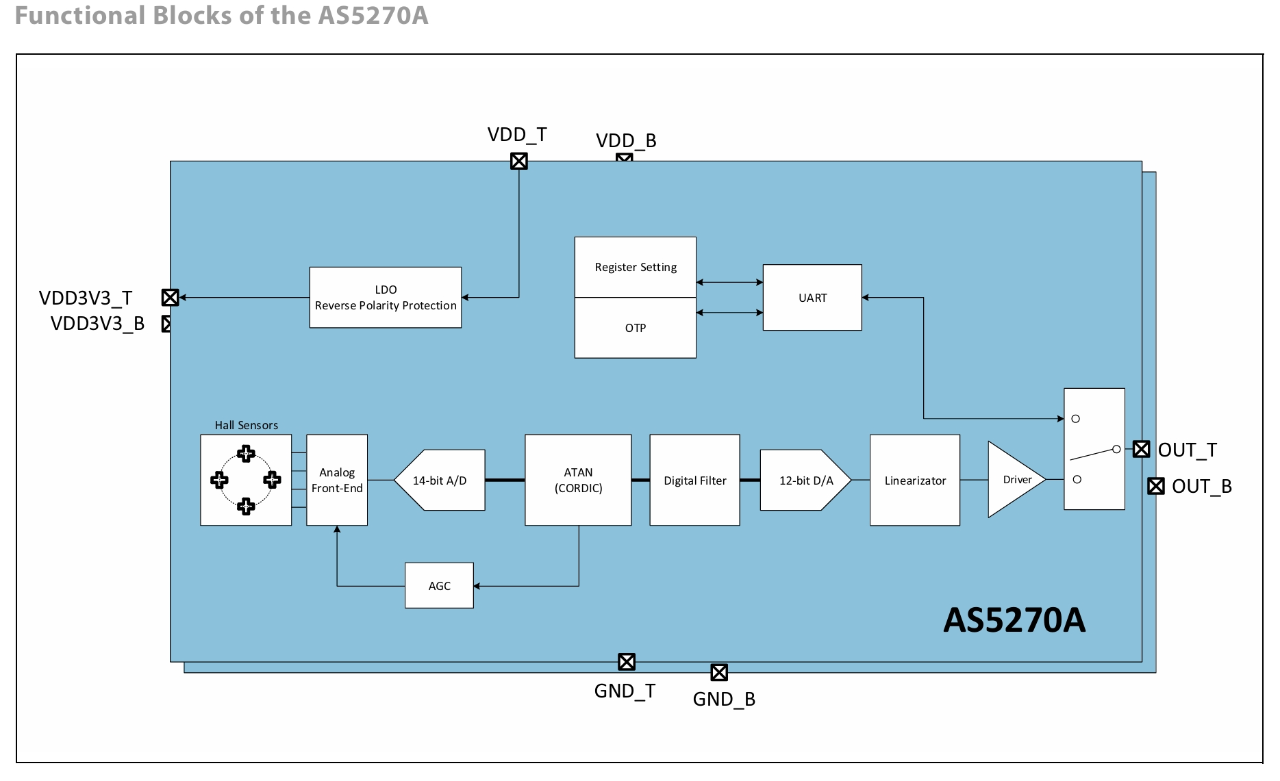

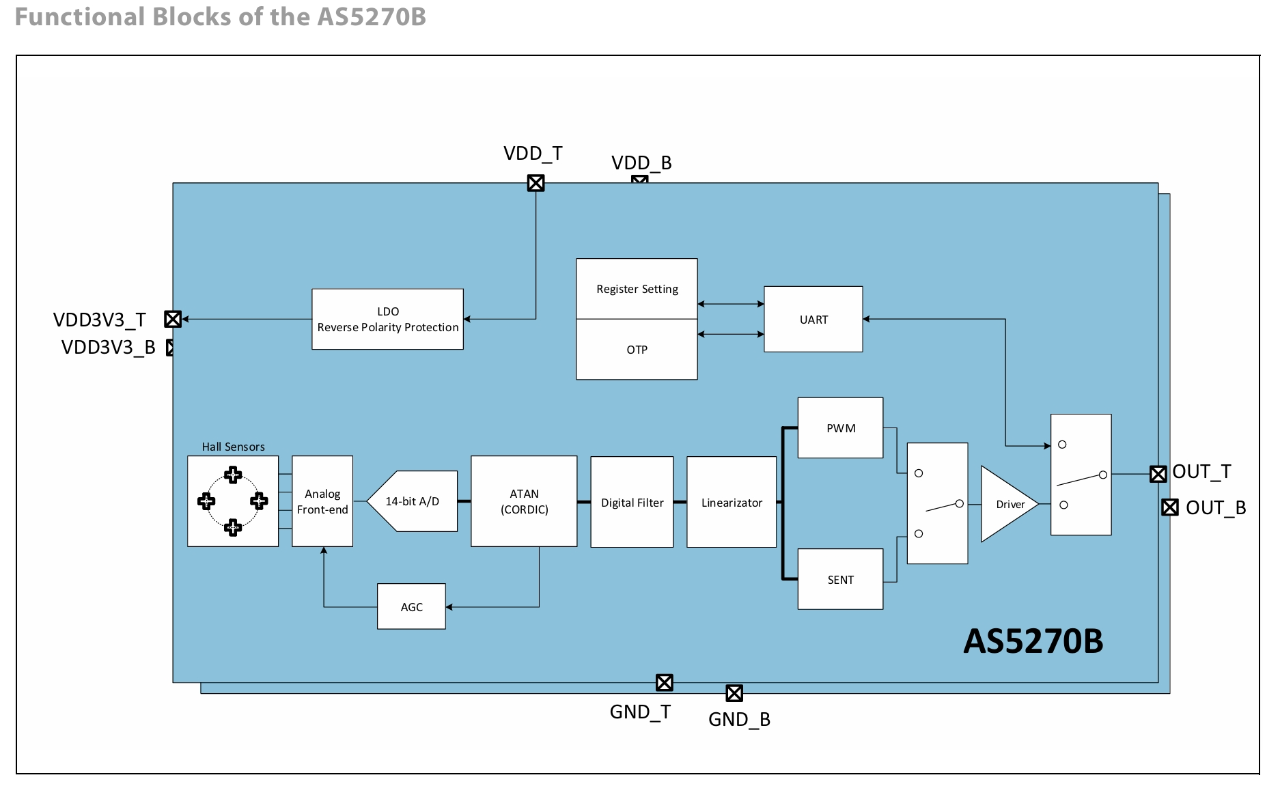

Product Block Diagram:
Product Features:
- 12-bit resolution at a minimum arc of 90°
- Low output noise, low inherent INL
- Stray magnetic field immunity
- Functional safety, diagnostics, dual-redundant chips
- Automotive-grade certified: AEC-Q100
Product Advantages:
- High precision for addressing small angular offsets
- Accurate angle measurement
- Enhanced durability and lower system cost (no shielding required)
- Suitable for automotive applications
Product Specifications:
|
Core resolution |
14bit/0.022° |
|
Accuracy [INL max] |
0.9° |
|
Output |
PSI5-14bit |
|
Max Speed |
-- |
|
Automotive qualified |
AEC-Q100 |
|
Die in package |
Dual |
|
Temperature |
-40 to 125 |
|
Package |
MLF16 |
Product Applications:
Brake and accelerator pedals, throttle and flaps, steering angle sensors, chassis motion, EGR, fuel level measurement systems, 2/4WD switches, and non-contact potentiometers
